What you need to draw?
angle, rotating disk Radierschablone, good circle with a stable joint, red-green-blue-yellow and black face pins to explain itself (0.9 mm HB), rag to clean eraser.
tips!
- Radiergummibrösel to remove smudges (Radiergummibrösel attach to the smearing and press with the flat side of the eraser on the crumbs and circles)
- face pointing straight at the pin draw
- keep mine at a slight angle and pin during the LIEN draw turn for thin lines
- thumb pressure also determines the line width
- ; Free Draw at with palm rest
- drawing pages are a little gray smudges so you do not we see
- A0 = square meter,
- arrowheads are about 2.5 mm long and 1.5 mm in width = 3 line width 0.5 ,
draw arrowheads:
- dimension lines are from the right and to be read from below!
- metrics belong to the dimension line!
- distance of the extent to body edge = 10mm.
- rely on a drawing must be on all dimensions can.
- In Provelierungsmaterial DIN specify (for example, T-L-U steel).
- Minimizing dimensions set in the drawing. If possible, place all dimensions outside.
- set twice Dimensions in parentheses (calculated dimensions).
- In a drawing not to scale, the dimensions are underlined.
- stay with ribs and reinforcements cut disregarded.
- For a horizontal cut (half cut) is cut, the lower side.
- The half cut is made in the Ford and side view is always right and bottom of the top view.
- case of several dimensions that are among the dimensions are given offset angle.
- standard parts are not taken into account during the cutting process (eg, screws).
Journal Distribution:

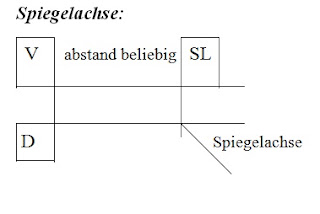

View component and decide whether to take the sheet portrait or landscape
Here are some of my character design sheet templates optical drawings according to DIN 10110
